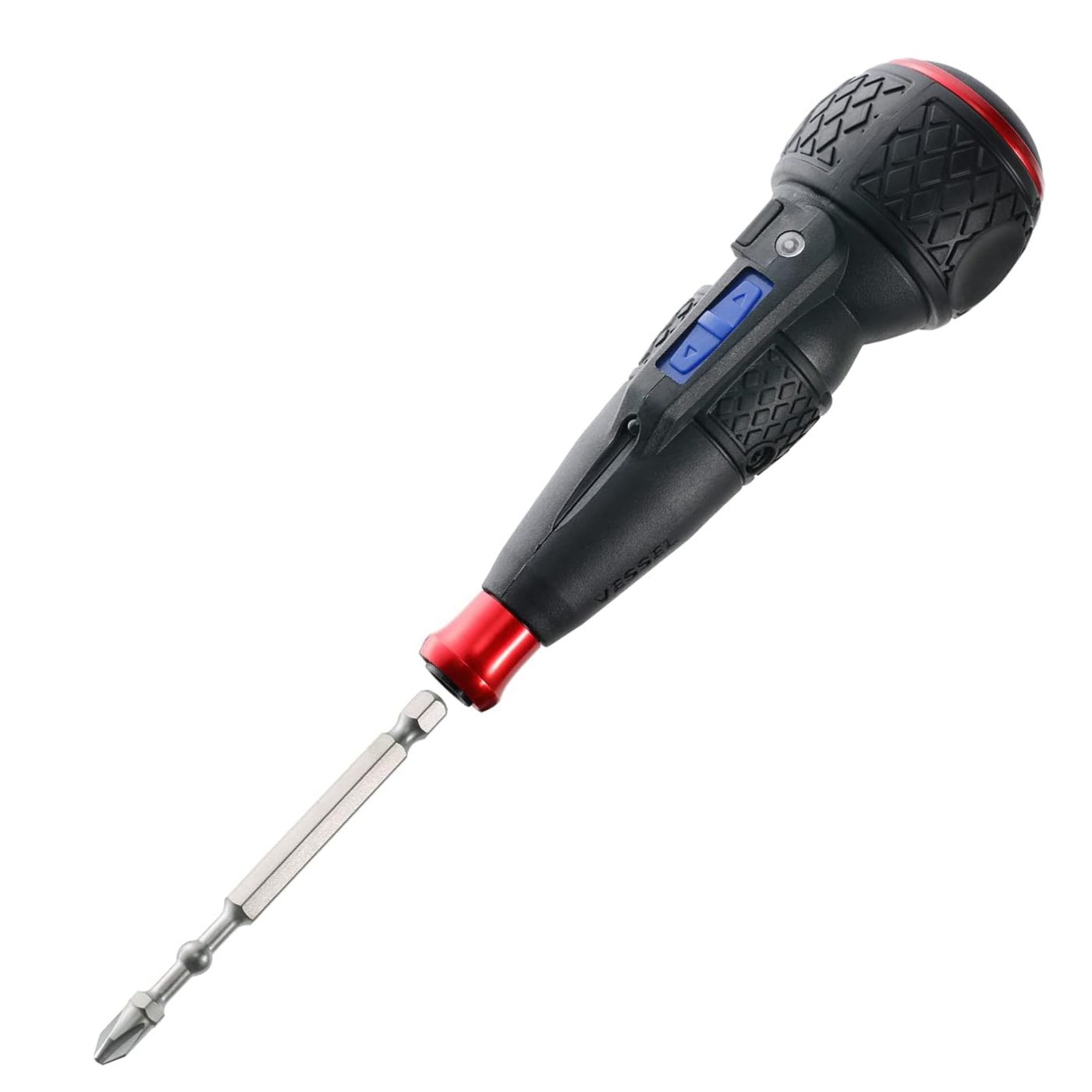

New Style Electric-Assist Screwdriver with Impact Ball Torsion Bit
* Electric output 17.7lbf-in(2.0N･m), No-load speed 280rpm, Manual torque up to 88.5lbf-in(10N･m)
* Electric power for quick tightening and Manual for final tightening.

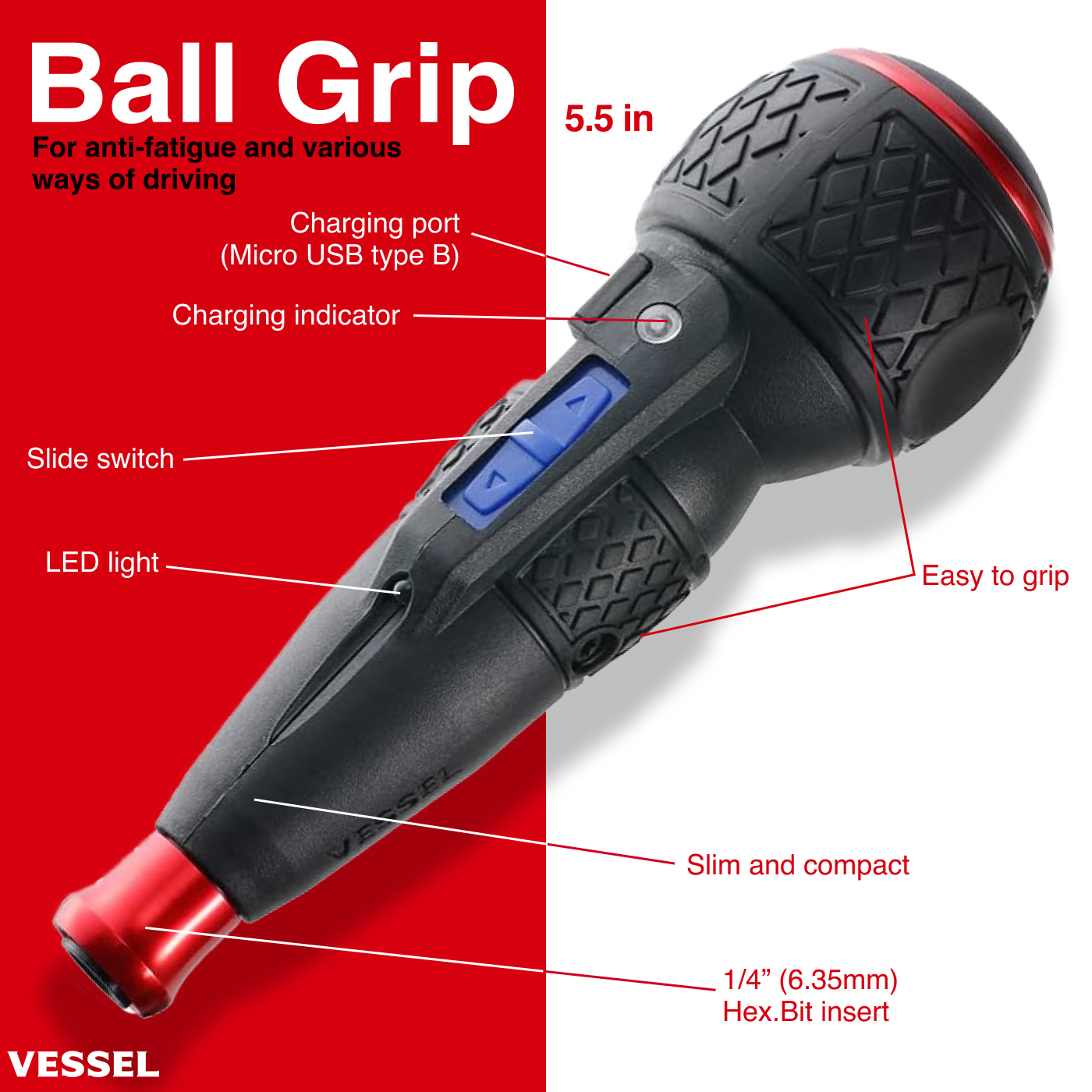

* With High Brightness LED light.
* Built in USB Recharge Li-ion Battery (3.6V-800mAh).
* 6.35mm HEX shank.
| Code | Model No. | Tip Size | Shank lengthmm | Hexmm | Grip diametermm | Overall Lengthmm | Outer Ctn. |
|---|---|---|---|---|---|---|---|
| 148514 | 220USB1U |
PH No.2 | 90 | H6.35 | 43 | 140 | 5 |
Contents

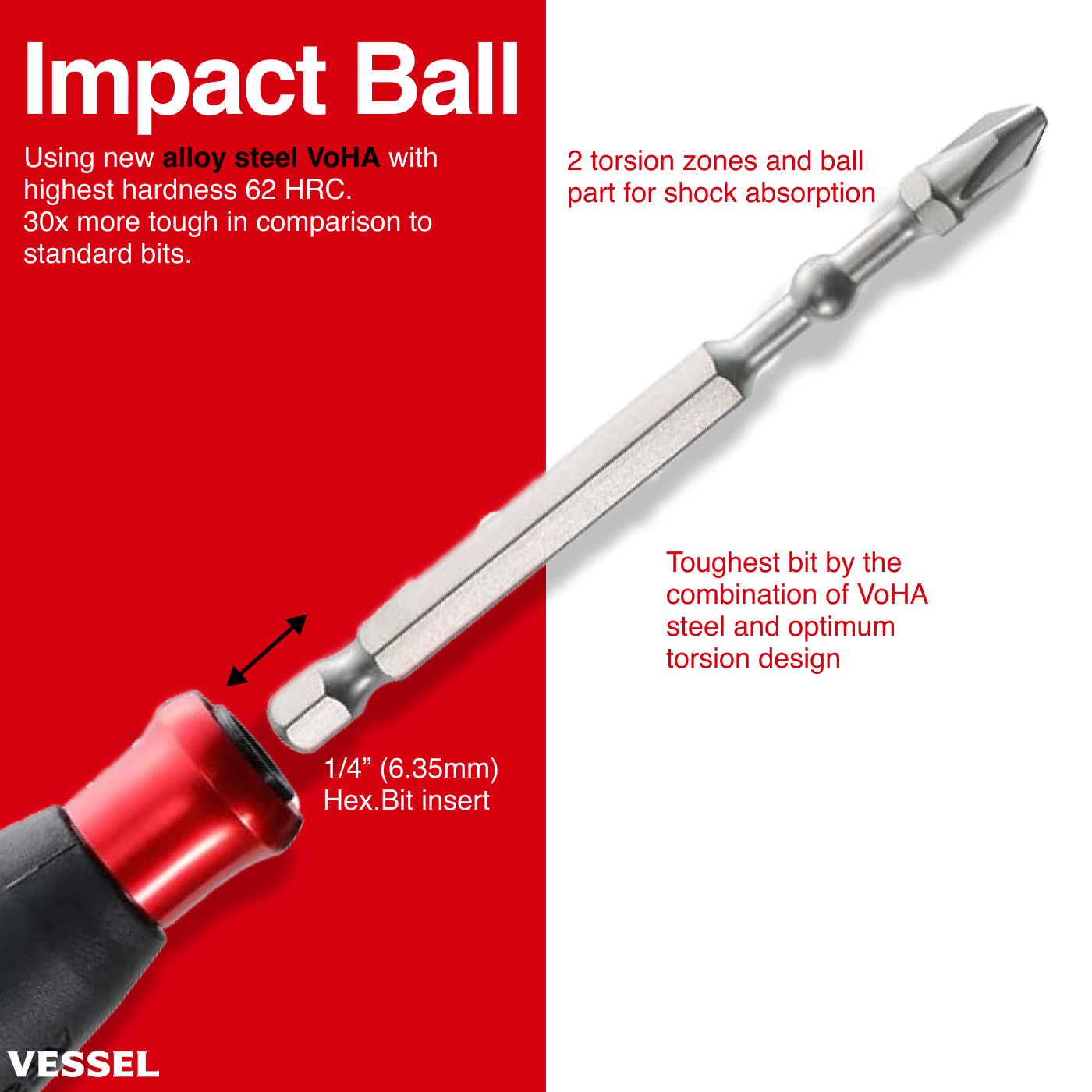

・220USB-1U x 1pc ・Impact Ball Torsion Bit (PH No.2 x 90mm) x 1pc ・USB Charging Cable (Micro USB Type B) (1m) x 1pc
Precautions
*The 220USB is a product that "assists" with electric power quick screw turning, and that enables to "manually" tighten to the end. Since the 220USB is not an impact driver, it is prohibited to perform the final screw tightening with the electric power assitant.
*Compatible screw size is up to M6. The following screws are not used with the 220USB: PH No.3 (M8) or larger, Hex H6 (M8) or larger, or Torx T40 or larger.
*Be sure to fully read the instruction manual.
*Be careful of the short-circuit accident or electricity shock during electric work.
*Overloaded use may cause injuries or damages in screws.
*Keep away this product from children.
