New Style Electric-Assist Screwdriver with Impact Ball Torsion Bit Set (Upgraded Type-C)
* Electric-Assisted driving and manual screwdriver use for maximum control
* 1.5X higher Electric Torque, 26.5 lbf-in for more powerful fastening (compared to 220USB25U)
* 1.2X higher Manual Torque, 106.2 lbf-in for tougher applications (compared to 220USB25U)

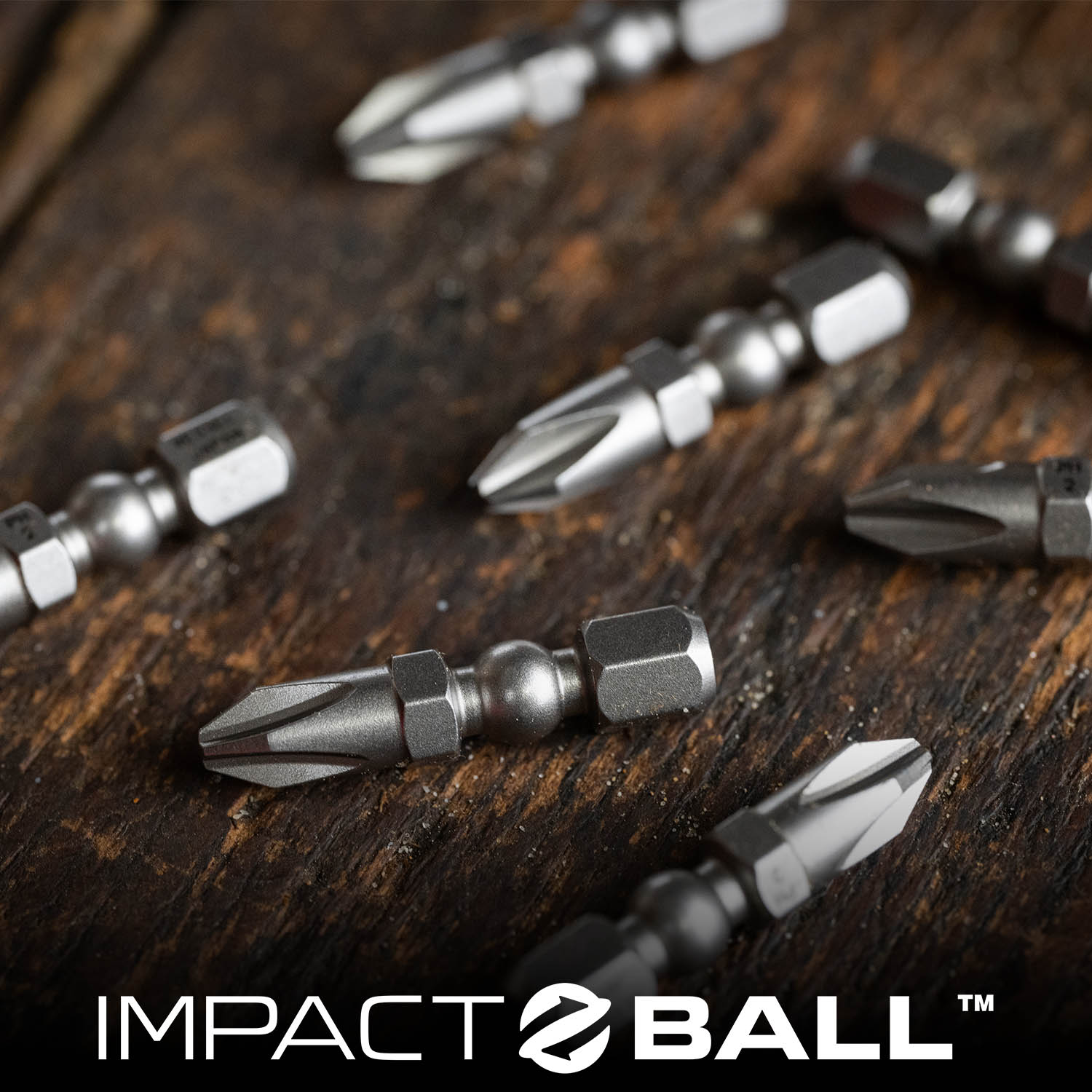

* Includes 24PC. bits + 1PC. Bit Holder (Tip sizes: +1, +2, +3, SL4, SL6, SL8, SQ1, SQ2, SQ3, PZ1, PZ2, PZ3, T10, T15, T20, T25, T27, T30, T40, H2.5, H3, H4, H5, H6)
* Rechargeable battery with USB Type-C charging for more convenient charging
* Built-in bright LED light for improved visibility for dark or tight spaces
* Made in Japan
New Style Electric-Assist Screwdriver with Impact Ball Torsion Bit Set (Upgraded Type-C)
* Electric-Assisted driving and manual screwdriver use for maximum control
* 1.5X higher Electric Torque, 26.5 lbf-in for more powerful fastening (compared to 220USB25U)
* 1.2X higher Manual Torque, 106.2 lbf-in for tougher applications (compared to 220USB25U)
* Includes 24PC. bits + 1PC. Bit Holder (Tip sizes: +1, +2, +3, SL4, SL6, SL8, SQ1, SQ2, SQ3, PZ1, PZ2, PZ3, T10, T15, T20, T25, T27, T30, T40, H2.5, H3, H4, H5, H6)
* Rechargeable battery with USB Type-C charging for more convenient charging
* Built-in bright LED light for improved visibility for dark or tight spaces
* Made in Japan
| Code | Model No. | Hexmm | Grip diametermm | Overall Lengthmm |
|---|---|---|---|---|
| 148541 | 220USBC25U |
H6.35 | 45 | 147 |
Spec.
(Higher Torque Model, USB-C)

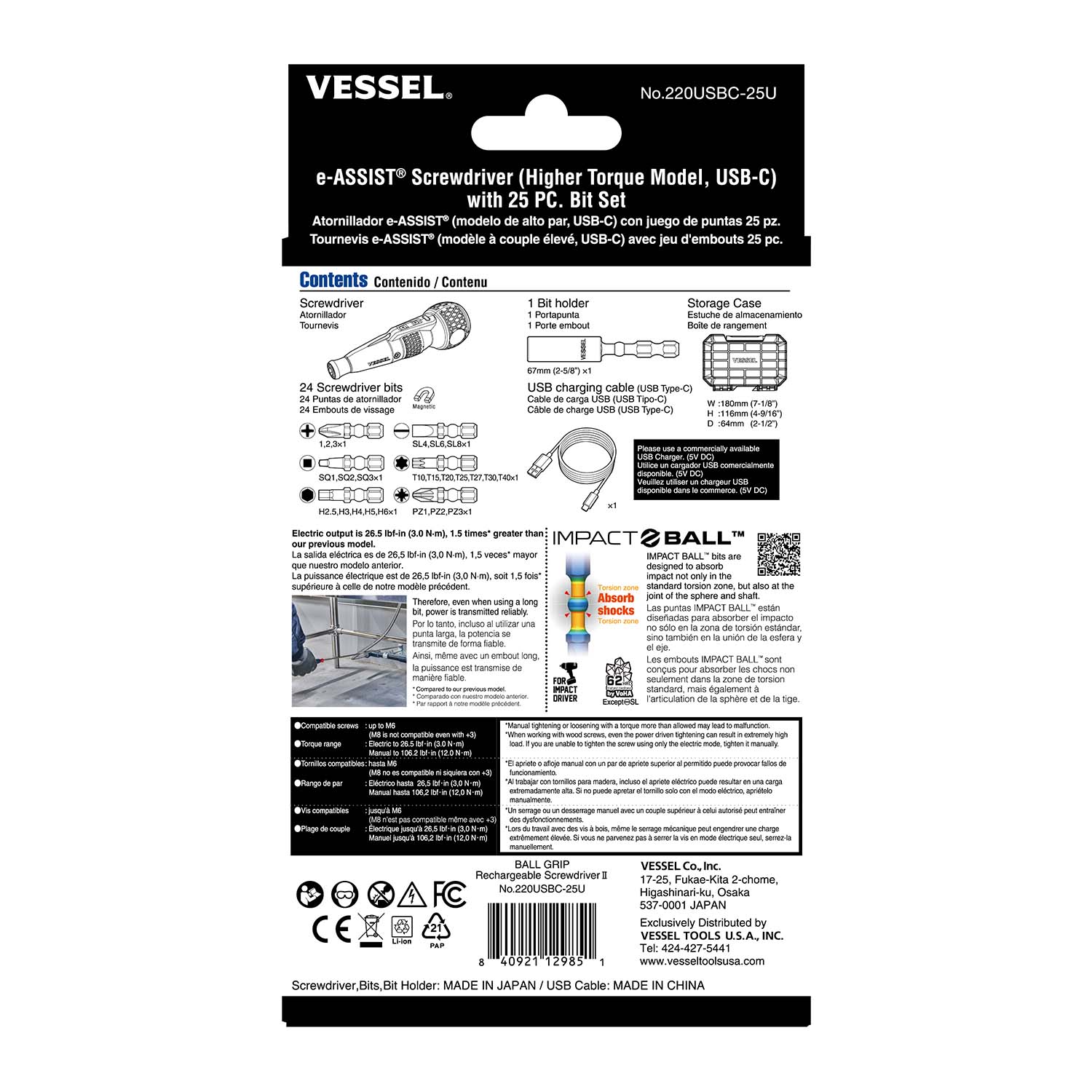

Contents

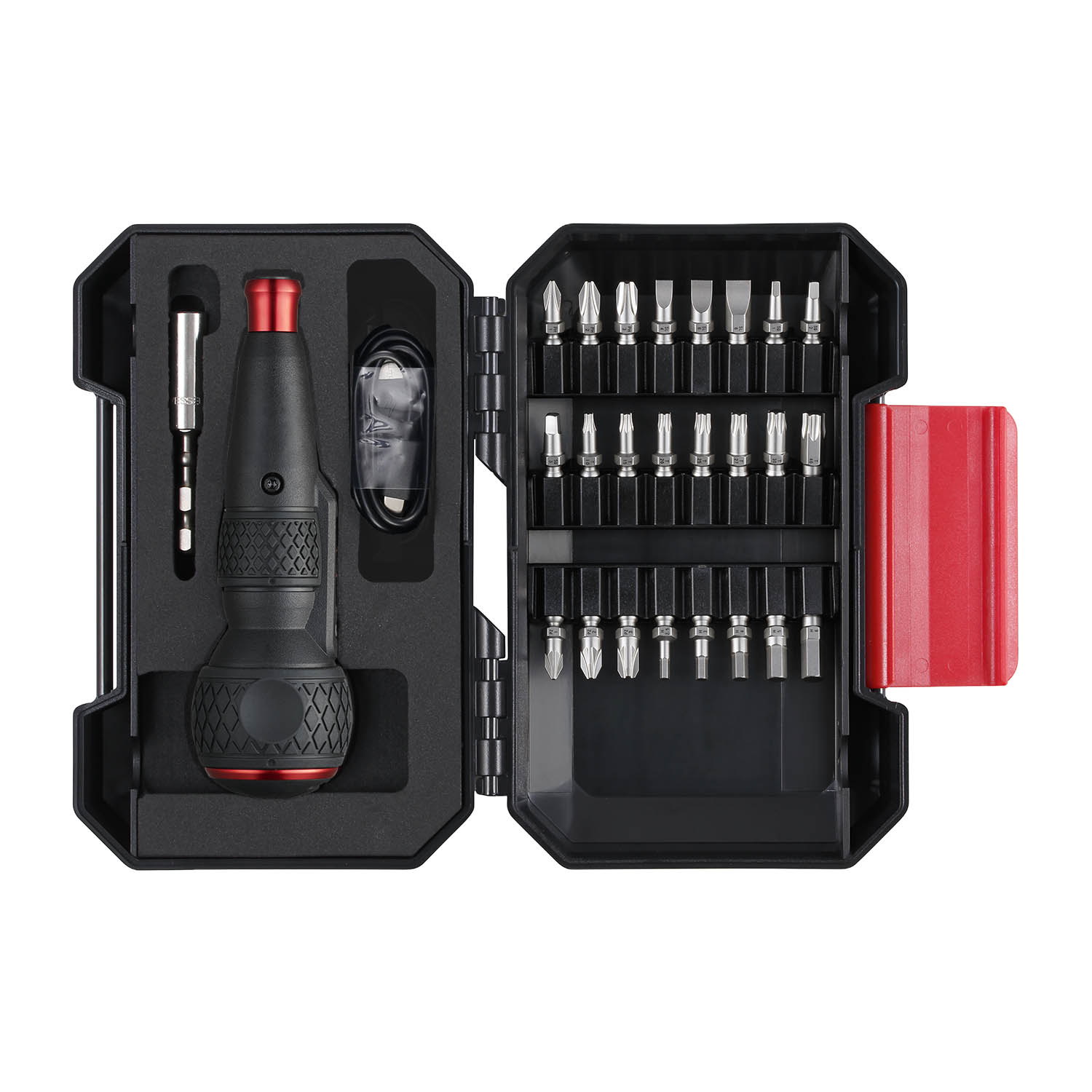

*220USBC(Higher Torque Model, USB-C) x 1pc *Impact Ball Torsion Bit (30mm) x 24pc *Impact Ball Bit Holder x 1pc*USB Charging Cable (USB Type-C) (1m) x 1pc *Package size: 8-3/4" (223mm) x 4-7/8" (123mm) x 2-5/8" (66mm))
Precautions
*The 220USBC is a product that "assists" with electric power quick screw turning, and that enables to "manually" tighten to the end. Since the 220USBC is not an impact driver, it is prohibited to perform the final screw tightening with the electric power assitant.
*Compatible screw size is up to M6. When using the following bit sizes, please be aware of the tool’s over-torque capability (up to 106.2 ft-lbs): Cross-Point No.3 (M8) or larger, Hex H6 (M8) or larger, and Torx T40 or larger.
*Be sure to fully read the instruction manual.
*Be careful of the short-circuit accident or electricity shock during electric work.
*Overloaded use may cause injuries or damages in screws.
*Keep away this product from children.
*FOR SAFETY USE OF e-ASSIST Screwdriver
